PELCO® Vacuum Desiccator Cabinets



A sturdy powder coated stainless steel constructed vacuum desiccator for storing electron microscopy samples, test samples, calibration standards, photographic film, forensic specimens, etc.

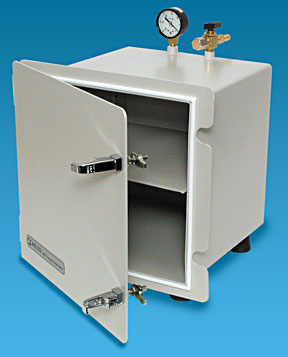

PELCO^® Basic Vacuum Desiccator Cabinet

2251, 2251-16, 2251-25

dry, dark, dust-free storage; maintain moisture-free conditions

This design offers:

• Square corners to give more efficient storage space
• Sturdy stainless steel materials
• Effective vacuum sealing
• Slow venting

Store photographic films, light or moisture sensitive materials, calibration standards and electron microscopy samples. Provided with vacuum gauge (inches of mercury, 0-30") and 3 way vacuum / vent valve. One adjustable and removable shelf included.

Outside dimensions (with valve and latch):
375mm W x 432mm H (with gauge) x 373mm D (14.75 W x 17 H x 14.7" D)

Inside dimensions:
298mm W x 298mm H x 302mm D (11.75 W x 11.75 H x 11.875" D

---

---

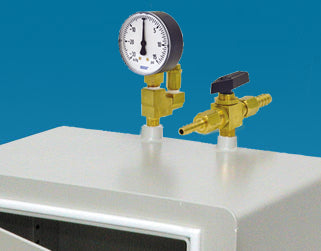

PELCO® N2 Purge Vacuum Desiccator Cabinet

2253, 2253-16, 2253-25

The N2 Purge Desiccator Cabinet has the same specifications as PELCO® Basic Vacuum Desiccator Cabinet but instead of purging the chamber with room air, it can be purged with N2.

Are available with 3 vacuum connections:

• 1/2" Hose Connection (standard) to connect vacuum systems with a 1/2" ID vacuum hose. A 3/8" Hose Connection is also included for 3/8" or 1/4" ID hose.
• NW/KF 16 Connection, compatible with NW/KF 16 vacuum connection hardware
• NW/KF 25 Connection, compatible with NW/KF 25 vacuum connection hardware (see below)


---

---

Vacuum Pumping Kits for the PELCO® Vacuum Desiccator Cabinets

Diaphragm Pump Kit for the #2251 Vacuum Desiccator

3436-51, 3436-51-230

This dry pumping kit consists of the #3436 diaphragm pump with 3 feet of ¼” thick wall silicone hose. This is a cost efficient solution  suitable for moderate vacuum requirements. Achievable vacuum level is in the 200mbar range. For higher vacuum levels, a two stage rotary pump would be more suitable. Available in both 115V and 230V.

---

VRI-2 Rotary Pump Kit 55 for the #2251 Vacuum Desiccator

92092-55, 92092-55-230

This pumping kit consist of the VRI-2 pump with a KF16 hose adapter, ¼” thick wall silicone hose and rotary pump exhaust filter. The achievable vacuum is in the 10-2 mbar range. Very cost effective solution offering fast pumping speed and good end vacuum. Ideally used for intermittent pumping. Available both in 115V and 230V.

The kit includes:

92092-55 (or 92092-55-230)          VRI-2 Pump Kit for Round Vacuum Desiccators, 115V (or 230V)
891-31               PELCO® Ultra 19 Vacuum Pump Oil, 1 liter
9609                  Exhaust Filter for VRI-2 Pump

891-31, 891-34 SDS (93KB PDF)

---

VRI-2 Rotary Pump Kit 51 for the #2251-16 Vacuum Desiccator

92092-51, 92092-51-230

This pumping kit consists of the VRI-2 pump with KF16 adapters, flexible stainless steel hose, connection hardware and  rotary pump exhaust filter. The achievable  vacuum level is in the 10-2 mbar range. Cost effective solution offering fast pumping speed and good end-vacuum. Suitable for intermittent pumping. For continuous pumping applications consider pumping kit 92092-52.

The kit includes:

92092-51 (or 92092-51-230)          VRI-2 Pump Kit 51 for #2251-16 Vacuum Desiccator, 115V (or 230V)
891-31               PELCO® Ultra 19 Vacuum Pump Oil, 1 liter
9609                  Exhaust Filter for VRI-2 Pump

---

VRI-2 Rotary Pump Kit 52 for the #2251-16 Vacuum Desiccator, Including Foreline Trap

92092-52, 92092-52-230

This pumping kit is the same as above with an additional foreline trap mounted between rotary pump and the vacuum desiccator. Includes all metal KF-16 hardware and exhaust filter. The foreline trap prevents backstreaming from the rotary pump to maintain an oil-free environment (provided the activated alumina for the foreline trap is exchanged at regular intervals). Best solution with good end vacuum. Suitable for continuous pumping applications.

The kit includes:

92092-52 (or 92092-52-230) VRI-2 Pump Kit 52 with Foreline Trap for #2251-16 Vacuum Desiccator, 115V (or 230V)
891-31        PELCO® Ultra 19 Vacuum Pump Oil, 1 liter
9609            Exhaust Filter for VRI-2 Pump
92090-50    PELCO® Activated Alumina Sorbent, 450ml
