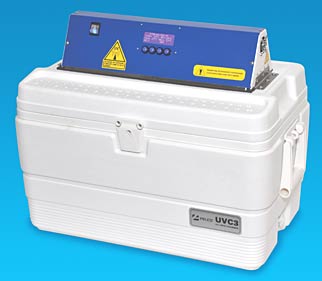

PELCO® UVC3 Cryo Chamber
PELCO® UVC3 Cryo Chamber
PELCO® UVC3 Exterior/Control Panel
PELCO® UVC3 Interior
The PELCO® UVC3 Cryo Chamber has been specifically designed to provide an economical yet precisely controlled low temperature environment for polymerization of polymers and resins for cryo specimen preparation. It can also be used for dehydration and infiltration of cryo specimens. This simple and functional unit has a large insulated chamber and comprises fully automatic temperature control for the polymerization process of embedding resins and polymers.
Features
- Liquid crystal display and PLC control
- Fan cooled electronic ballast for UV lamp tubes
- Temperature range can be set from -10°C to -40°C (14°F to -40°F)
- Includes memory function for Min/Max temperatures during any run
- 365nm ultraviolet lamps thermally shielded by dual pane Plexiglas
- Holds up to 66 samples with BEEM® Cryo Capsule Holders
- Perfect for Unicryl, LR White, LR Gold, Lowicryls, JB-4, Quetols and all other resins cured by 365nm UV radiation
- Universal voltage
Control Panel
UVC3 UV Cryo Chamber Screen Chart for Intuitive Programming
Operation
- Add dry ice to the chamber
- Set temperature (-10°C to -40°C / 14°F to -40°F)
- Turn on UV lamp and cure embedding resins
Specifications
| UV Light Source | Two 15-watt self-filtering long wavelength tubes 1600 µW/cm_ of 365nm UV radiation at 15cm (6") |
| Temperature Control | -10°C to -40°C (14°F to -40°F) Typically +/- 1.5 °C |
| Control Type | LCD Display with PLC with function buttons |
| Exterior Dimensions | 64.l L x 36.8 W x 48.9cm H (25.25" L x 14.50" W x 19.25" H) |
| Interior Dimensions | 56.5 L x 30.5 W x 33.7cm H (22.25" L x 12" W x 13.4" H) |
| Power Requirements | 110 - 240VAC, 50/60Hz (240V-0.5A, 110V-1A) |
| Weight | 11.4 kg (25 lbs.) / Shipping weight: 18.2kg (40 lbs.) |
