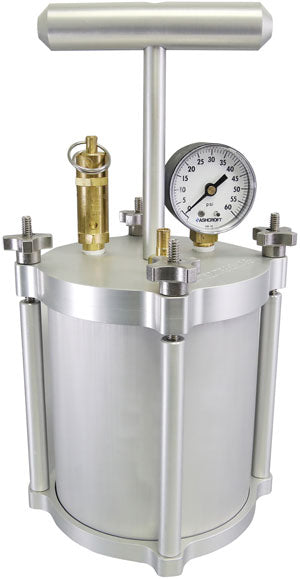

PELCO® Pressure Pot
PELCO® Pressure Pot
Pressure chamber for bubble-free cold mounts
PELCO® Pressure Pot

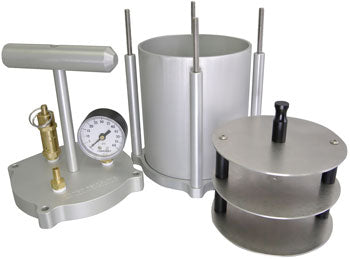

System Components
Pressure cast (left) vs. as-cast (right)
with Kulzer Technovit® 4006
Resin (#813-560)
The PELCO® Pressure Pot provides an efficient way to reduce bubble formation in metallographic mounts and other cast resin, including acrylic or epoxy-embedded samples. Working pressure is 30 PSI, maximum pressure is 40 PSI with a safety release in the case of overpressure. The chamber is pressurized via a standard Schrader valve. Quick lock knobs allow the chamber to be sealed, or unsealed, in under 30 seconds.
Overall Internal Dimensions: 4.75" Dia. x 5.5" H (12 x 14cm)
With its 3-tiered design and an internal volume larger than our competitors', the PELCO® Pressure Pot enables curing of up to eighteen 1" samples at the same time. Sample curing time will vary by embedding material.
| Tray Capacity | |||
| Molds | Nominal Size (ID) | Per Tier | Total |
| #813-172 | 1" | 6 | 18 |
| #813-174 | 1.25" | 5 | 15 |
| #813-176 | 1.5" | 4 | 12 |
| #813-177 | 2" | 1 | 2 |
| #813-178 | 1.25" | 5 | 15 |
| #813-179 | 1.5" | 4 | 12 |
| #813-180 | 2" | 1 | 2 |
This PELCO® Pressure Pot system is highly recommended for use with our Embedding Resins to achieve water-clear mounts.
Any air or gas pump with a Schrader valve attachment can be used to pressurize the chamber. Pressure is released by pulling up on the ring on the safety valve.
The PELCO® Pressure Pot is engineered and manufactured in the USA.

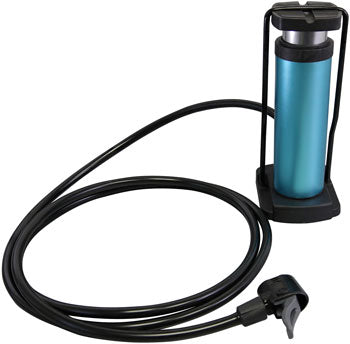

Manual Foot Pump for #2242 PELCO® Pressure Pot
A simple manual pump with suitable Schrader connector for pressurizing the PELCO® Pressure Pot.
