PELCO® Mounting Waxes

PELCO® Quartz Sticky Wax 70C

PELCO® Quartz Sticky Wax 70C is a quartz type sticky, orange colored wax (translucent in thin films) used to hold crystals or other materials while they are being sliced, lapped or polished. Moderate hardness and strength make it useful for bonding small samples in diamond wheel sawing and wire sawing operations. Widely used for holding semiconductors, optical materials, ceramics and metals with medium to large contact areas. Chemically resistant. Melting point is 70°C.

SDS (52KB PDF)

---

PELCO® Quickstick 80C

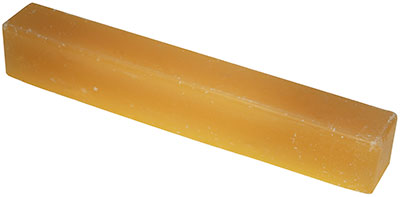

PELCO® Quickstick 80C is an amber colored wax, which is translucent in thin films. High hardness makes it ideal for sawing, ultrasonic cutting and lapping & polishing operations. Best suited to vitreous materials, polished metal surfaces, semiconductors and piezoelectric materials with large contacted areas. Chemically resistant. Melting point is 80°C.

SDS (119KB PDF)

---

PELCO® Cement, Low Heat

PELCO® Cement, Low Heat, 30L is a tan colored wax, which is translucent in thin films. Softness makes it most useful with abrasive slurry cutting of materials. Best suited to non-porous surfaces such as glass or polished metal with a reasonably large area. Easily soluble in a variety of solvents. Melting point is 52°C.

SDS (61KB PDF)

---

PELCO® Quickstick 135

PELCO® Quickstick 135
Tube (892-41)

PELCO® Quickstick 135
Bars (892-40, -42, -43)

PELCO® Quickstick 135
Tray (892-44)

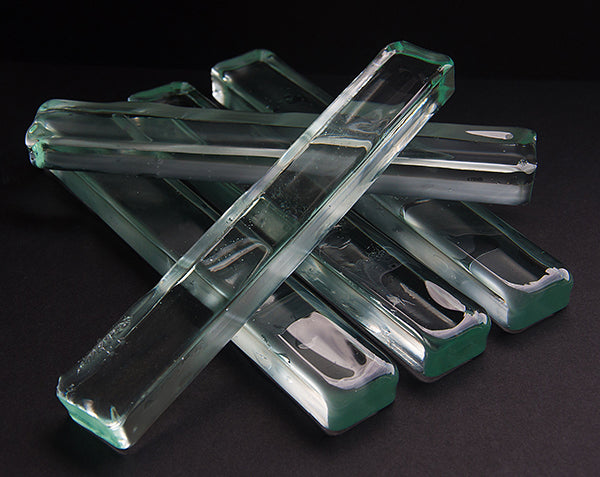

PELCO® Quickstick 135 is a clear wax with a slight green color. High hardness and strength make it ideal for diamond wheel cutting, wire saw cutting, abrasive slurry cutting, ultrasonic cutting, lapping and polishing, etc. Widely used with semiconductor, optical material, ceramics and metals with small contact area. Soluble in acetone and methylene chloride, but resists most other common solvents. Melting point is 135°C.

Available in a cardboard tube, as a block in a foil container, or as sets of bars or a single bar.

SDS (124KB PDF)

---

Apiezon® W Wax

Black wax for permanent sealed joints at room temperatures for low to medium vacuum range. Also used as a low melting point (100° C) wax for sample mounting applications.

Technical Notes: W Wax (212KB PDF)
SDS (272KB PDF)

---

PELCO Kleensonic™ WRS Wax Stripper

PELCO Kleensonic™ WRS is an environmentally friendly cleaning compound in powder form formulated for removing mounting waxes used in specimen preparation, semiconductor processing and casting. Needs to be dissolved in water to make the cleaning solution. Primarily designed to dissolve and remove waxes and oils, but Kleensonic™ WRS can also be used to remove silicones, finishing compounds, soils and greases. PELCO Kleensonic™ WRS is compatible with parts or products made from silicon, glass, iron, aluminum zinc, copper, brass and magnesium. Highly recommended to use ultrasonic agitation to enhance cleaning process and to reduce cleaning time. Sold in container of 1 lb. (makes 2.67 gallons).
Usage: 6 oz. (170grams) of powder concentrate in water makes 1 gallon (3.8ltr) of ultrasonic wax stripper solution, best working temperature 50 - 70°C.

SDS (121KB PDF)

There are Hazard Shipping Fees associated with this product.
