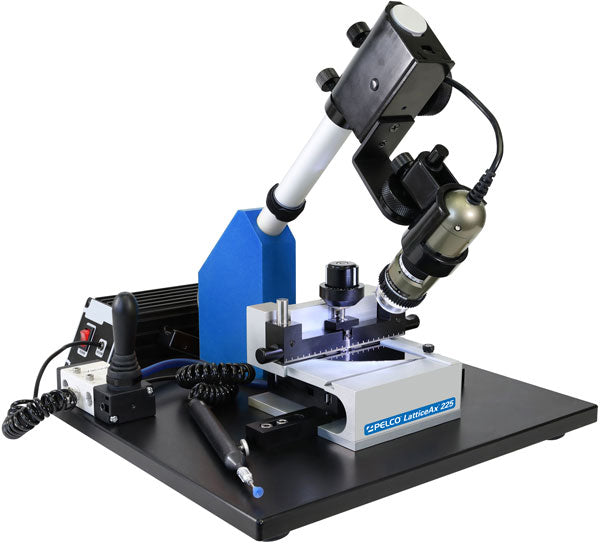

PELCO® LatticeAx® 225

The PELCO® LatticeAx® 225 Precision Indent and Cleaving System (formerly from LatticeGear™) builds on the patented PELCO® LatticeAx® 120 base system with the addition of high magnification imaging, enabling increased precision of indenter positioning. This results in samples cleaved with increased accuracy. The PELCO® LatticeAx® 225 can deliver 20μm positional accuracy with high quality cleaved surfaces in approximately 5 minutes for a trained operator. The imaging package includes a focusing mount, a digital microscope with polarizer and real-time image acquisition and display software. Through realtime imaging, the indent is placed accurately with respect to the target making cleaving the sample target simple and fast for all trained users. The PELCO® LatticeAx® 225 accepts samples of multiple material types through a wide range of surface area sizes and thicknesses.

SMB6 Cleaved with
the LatticeAx^®

Cleaved Sapphire
Wafer

Cleaved Copper Film
on Silicon

Features

• Features ±20 microns cleaving accuracy
• Robust workstation platform designed for indenting and cleaving
• USB2 digital microscope with realtime digital imaging interface (computer and monitor not included)
• Microscope mount with fine focus control
• Vacuum pump to secure sample with pneumatic valve switch

Large Sample Platform for PELCO® LatticeAx®

The Large Sample Platform is a PELCO® LatticeAx® option that adds support for wafers and samples up to 300mm. It consists of a support system and an indenter extension. The five fingers support large samples while the extender puts the fine-positioning knob for the indenter within easy reach. The Large Sample Platform fits on all models of PELCO® LatticeAx® systems and is easy to install with a single set screw.

PELCO® LatticeAx® 420 Upgrade

Easily convert an existing PELCO® LatticeAx® 225 into a PELCO® LatticeAx® 420.

#54300-U, 54300-220U includes the following:

• A workstation platform with microscope stand
• X-Y stage
• Microscope with ring light and source
• Vacuum system

A computer with at least USB 2.0 capability and a monitor (not included) are required for the PELCO® LatticeAx® 420 Upgrade.
