PELCO® LatticeAx® 120

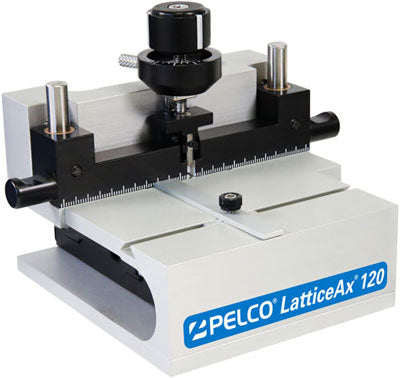

The PELCO® LatticeAx® 120 base system (formerly from LatticeGear™) comprises a scribeless cleaving instrument with fine, adjustable control of the indentation action on the sample surface, followed by a precision controlled 3-point cleaving step for the production of a high-quality cleaved sample cross-section.

It includes a LatticeAx® vacuum stage to secure the sample during the indentation step; a precision, low-profile linear stage to accurately set the indentation position; a pre-installed diamond indenter; and a small vacuum pump with its connection hose.

It is a compact, versatile and powerful cleaving tool for downsizing and cross sectioning a wide range of substrates including Silicon, GaAs, InP, Sapphire, and Glass. With the PELCO® LatticeAx®, you can cleave your samples as they are, without additional preparation or strict rules on the size, shape, thickness, edge quality and material type.

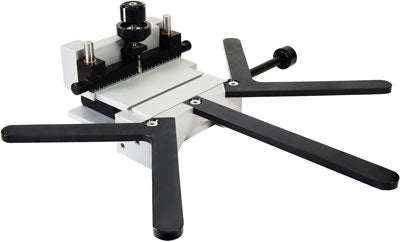

Large Sample Platform for PELCO® LatticeAx®

The Large Sample Platform is a PELCO® LatticeAx® option that adds support for wafers and samples up to 300mm. It consists of a support system and an indenter extension. The five fingers support large samples while the extender puts the fine-positioning knob for the indenter within easy reach. The Large Sample Platform fits on all models of PELCO® LatticeAx® systems and is easy to install with a single set screw.

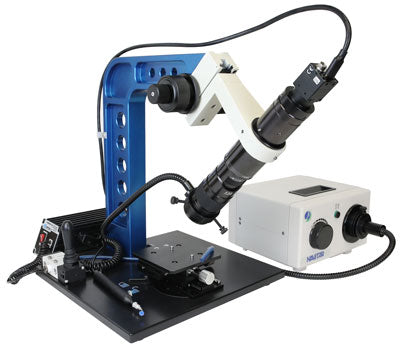

PELCO® LatticeAx® 420 Upgrade

Easily convert an existing PELCO® LatticeAx® 225 into a PELCO® LatticeAx® 420.

#54300-U, 54300-220U includes the following:

• A workstation platform with microscope stand
• X-Y stage
• Microscope with ring light and source
• Vacuum system

A computer with at least USB 2.0 capability and a monitor (not included) are required for the PELCO® LatticeAx® 420 Upgrade.

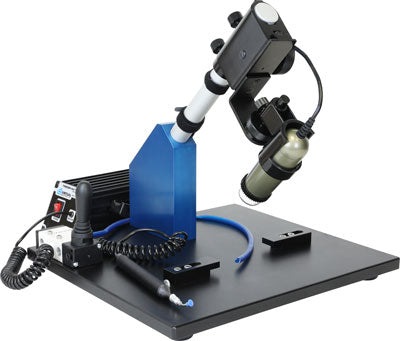

PELCO® LatticeAx® 225 Upgrade

Easily convert an existing LatticeAx^® 120 into a complete PELCO^® LatticeAx^® 225

#54310-U, 54310-220U includes the following:

• A workstation platform with microscope stand
• Microscope
• Vacuum system

A computer with at least USB 2.0 capability and a monitor (not included) are required for both PELCO^® LatticeAx^® Upgrades.
