PELCO® ESD Safe PTFE Wafer Handling Tweezers
PELCO® ESD Safe PTFE Wafer Handling Tweezers
Conductive, synthetic carbon fiber reinforced tips with non-magnetic stainless steel grips. Sturdy and non-scratching. Clean room compatible. Light weight and strong.
SV - PVDF (polyvinylidene fluoride) reinforced with carbon fiber.
- Excellent mechanical strength and toughness
- Smooth surface
- Heat stabilized, high heat capability, continuous use temperature up to 150°C (302°F)
- High purity (clean room and medical devices approved, low extraction value)
- Excellent chemical resistance to most aggressive substances and solvents. Resistant to halogens. Not compatible with NMP.
- Outstanding resistance to hydrofluoric acid (40% conc., 90°C, 194°F), nitric acid (50% conc., 90°C, 194°F), hydrochloric acid (36% conc., 90°C, 194°F)
- High abrasion resistance
- Resistant to UV and nuclear radiation (sterilization)
- ESD safe material
- Typical applications include handling of very scratch and contamination-sensitive components, cleaning and etching processes
Sturdy but non-scratching. Outstanding chemical resistance.
| Prod # | Description | Style | Length | Material | Points |
|---|---|---|---|---|---|
|

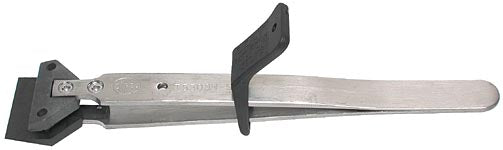

5031 |
ESD Safe Carbon Wafer Tweezers, for 10.2 to 15.2cm (4" to 6") wafers |
132mm | PVDF | 23mm (0.9") | |
|
5031-1 |
ESD Safe SV Carbon Wafer Tweezers, Replacement Tips |
PDVF |
23mm (0.9") |
EZ lever for easy closing and opening of tweezer. Not a locking mechanism.
| Prod # | Description | Style | Length | Material | Points |
|---|---|---|---|---|---|
|

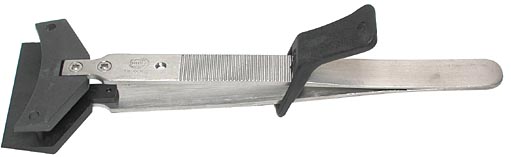

5032 |
ESD Safe Carbon Wafer Tweezers, for 15.2 to 25.4cm (6" to 10") wafers |
135mm | PVDF | 23mm (0.9") | |
|
5049-SV-1 |
ESD Safe SV Carbon Wafer Tweezers, Replacement Tips |
PDVF |
23mm (0.9") |
