NEW Pelcotec™ Etched Si CDMS

Available as NIST Traceable or as Certified against NIST Standard

Easy to use and very useful for quick and precise SEM, FE-SEM, FIB, CD-SEM, LM, and AFM magnification calibration in the X axis.

Fully-featured and traceable calibration standards for a wide measurement range. They are made using the latest semiconductor and MEMS manufacturing techniques for etching features yielding superior line edge quality (Line edge roughness of +/- 0.3nm per 1um length of line edge) and are ideal for low keV imaging (≤1keV).

The Pelcotec™ Etched Si CDMS Calibration Standard is available with two feature size ranges, which are both offered as traceable and certified standards, making a total of 4 versions:

Pelcotec™ Etched Si CDMS-1T
Fully traceable with features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-1T Traceable Certificate (271KB PDF)

Pelcotec™ Etched Si CDMS-0.1T
Fully traceable with features from 2.0mm to 100nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1T Traceable Certificate (272KB PDF)

Pelcotec™ Etched Si CDMS-1C
Individually certified against a NIST standard with features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-1C Conformance Certificate (190KB PDF)

Pelcotec™ CDMS-0.1C
Individually certified against a NIST standard with features from 2.0mm to 100nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1C Conformance Certificate (190KB PDF)

Pelcotec™ Technical Notes for CDMS - Critical Dimension Magnification Standards (149KB PDF)

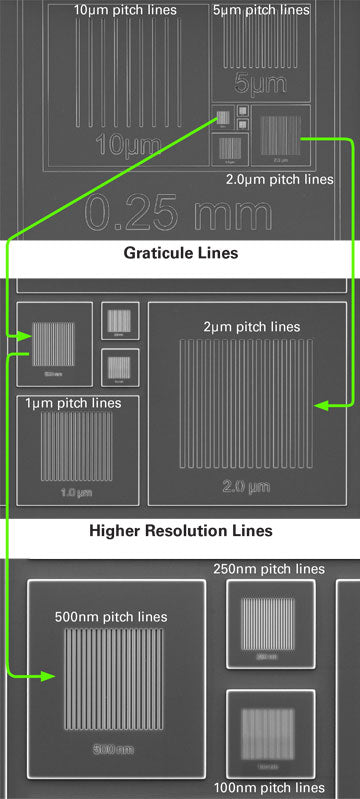

500nm, 250nm and 100nm lines are only on the Etched Si CDMS-0.1T and 0.1C products

Feature sizes for the Pelcotec™ Etched Si CDMS-1T and -1C are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm and 1µm

Feature sizes for the Pelcotec™ Etched Si CDMS-0.1T and -0.1C are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm and 100nm

Comparison Table Below

	Pelcotec™ Etched Si CDMS-1	Pelcotec™ Etched Si CDMS-0.1
Substrate: High conductivity silicon (resistivity of 0.001 - 0.002 Ohm/cm)	✓	✓
Substrate size: 2.5 x 2.5mm	✓	✓
Substrate thickness: 525 ±10µm	✓	✓
Unique serial identification number per chip	—	✓
Calibration squares at 2mm, 1mm, 0.5mm, 0.25mm	✓	✓
Graticule lines perpendicular to the X axis ruled at 10µm, 5µm, 2µm and 1µm pitch	✓	✓
High Resolution version only - Additional graticule lines perpendicular to X axis ruled at 500, 250 and 100nm pitch	—	✓
Traceable at the wafer level to NIST	T versions	T versions
Direct certification of CDMS chip to a NIST standard	C versions	C versions
Available unmounted	✓	✓
SEM mounts A-R available	✓	✓
Precision better than 0.3%	✓	✓
Line edge roughness of +/- 0.3nm per 1um length of line edge	✓	✓

The Pelcotec™ Etched Si CDMS Critical Dimensions and Magnification Standards are made on an ultra flat silicon substrate with a precision etched lines for features sets from 100nm to 2µm. Due to its sturdy construction, the CDMS standard can be cleaned using a plasma cleaner on low settings.

The smaller features are nested for easy navigation and quick calibration. The accuracy of the features is 0.3% or better. The actual size of the standard is 2.5 x 2.5mm with a thickness of 525µm ±10µm. There is no coating on the Si surface. Each Pelcotec™ Etched Si CDMS Calibration Standard has a unique identification number.

They are available either unmounted or mounted on SEM holders A-R. For AFM applications the Pelcotec™ Etched Si CDMS is mounted on a 12mm AFM disc; for LM applications it is mounted on a 25 x 75mm glass slide.

The Etched Si CDMS standard may also be mounted on a custom mount of your choice.

Store the Pelcotec™ Etched Si CDMS Calibration Standard in a vacuum desiccator such as the PELCO® SEM Sample Stub Vacuum Desiccator.

Pelcotec™ Etched Si CDMS-1T

NIST traceable with features from 2mm to 1µm for magnification 10x - 20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 10µm, 5µm, 2µm, and 1µm

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-0.1T

NIST traceable with features from 2mm to 100nm for magnification 10x - 200,000x for SEM, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, and 100nm

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-1C

Certified against NIST standard with features from 2mm to 1µm for magnification 10x - 20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, and 1µm

See mount selections, types A-R

Pelcotec™ Etched Si CDMS-0.1C

Certified against NIST standard with features from 2mm to 100nm for magnification 10x - 200,000x for SEM, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, and 100nm

See mount selections, types A-R

Documentation

SDS

Technical Notes
