FIB Grid Holders for TEM grids and samples

15464 (use 15464-20)

PELCO^® Small FIB Grid Holder

Simple, but effective PELCO^® FIB grid holder based on a standard ø12.7mm (1/2") pin stub. This holder holds up to 2 FIB grids of the same thickness. Can also be used to safely store FIB grids with thin sections with attached to them. Overall dimensions are ø12.7mm (1/2") x 7.8mm (0.3") H w/o pin. Pin is standard ø3.2mm (1/8"). Material: vacuum grade aluminum with brass screw. Philips screwdriver #0 included.

15467 (use 15464-20)

15487

PELCO^® Single 1/2" FIB Sample & Grid Holder

The PELCO^® Single FIB Sample and Grid Holder holds a FIB sample mounted on a pin stub for FIB milling and lift-out procedures. It also holds two FIB grids conveniently close to the sample to mount and prepare TEM lamellae on the FIB grid for subsequent TEM imaging.

There are two height options: standard and low profile. The standard height comes with a #16111 pin stub and the pin length of the mount is 9.5mm (3/8") while the low profile comes with a #16176 pin stub and the pin length of the mount is 6.5mm (1/4"). The low profile holder is primarily for systems that require shorter pin mounts and/or sample heights.  This compact and cost effective holder is suitable for all FIB/SEM systems which accept pin mount holders, such as the Thermo Fisher/FEI, ZEISS and TESCAN systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

The standard height (#15467) is made of vacuum grade aluminum with brass screws. Philips screwdriver #0 included. Overall size of 15467 is 22.4 x 12.7 x 11.7mm (0.88 x 0.5 x 0.46"). Pin is 3.2mm (1/8") diameter x 9mm (3/8") length.

The low profile (#15487) is made of vacuum grade aluminum with stainless steel screws. Hex key is included. Overall size of 15487 (excluding pin height) is 22.4 x  12.7 x 7mm (0.88 x 0.5 x 0.28"). Pin is 3.2mm (1/8") diameter x 6.5mm (1/4") length.

 15468 (use 15464-20)

15488

PELCO^® Double 1/2" FIB Sample & Grid Holder

The PELCO^® Double FIB Sample and Grid Holder holds FIB samples mounted on two standard 1/2" (12.7mm) pin stubs for FIB milling and lift-out procedures. It also holds two FIB grids of the same thickness conveniently close to the sample to mount prepared TEM lamellae on the FIB grid for subsequent TEM imaging.

There are two height options: standard and low profile. The standard height comes with two #16111 pin stubs and the pin length of the mount is 9.5mm (3/8") while the low profile comes with two #16176 pin stubs and the pin length of the mount is 6.5mm (1/4"). The low profile holder is primarily for systems that require shorter pin mounts and/or sample heights. Compact and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders, such as the Thermo Fisher/FEI, ZEISS and TESCAN systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

The standard height (#15468) is made of vacuum grade aluminum with brass screws. Philips screwdriver #0 included. Overall size is 36.5 x 12.7 x 11.6mm (1.44 x 0.5 x 0.46"). Pin is 3.2mm (1/8") diameter x 9.5mm (3/8") length.

The low profile (#15488) is made of vacuum grade aluminum with stainless steel screws. Hex key is included. Overall size of #15488 (excluding pin height) is 36.5 x  12.7 x 7mm (1.44 x 0.5 x 0.28") . Pin is 3.2mm (1/8") diameter x 6.5mm (1/4") length.

15466

PELCO^® Multiple FIB Grid Holder

Larger FIB grid holder capable of holding multiple FIB grids of the same thickness. Can also be used to safely store FIB grids with thin section (lamellae) attached to them. Brass thumbscrews facilitate easy loading and unloading. Overall dimensions 22.5 x 29 x 13.5mm (7/8 x 1-1/8 x 5/8"). Standard 3.2mm (1/8") pin. Material: vacuum grade aluminum with brass thumbscrews.

Screw used is 4-40 x 3/8, Thumb, Brass

15465

PELCO^® 1" FIB Sample and Grid Holder

The FIB Sample Prep and grid Holder holds an FIB sample mounted on a standard 25mm (1") pin stub for FIB milling and lift out procedures. It also holds FIB grids of the same thickness to mount the prepared lamellae on an FIB grid for subsequent TEM imaging. Versatile and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders such as the FEI, ZEISS and Tescan systems. For the JEOL and Hitachi systems a pin mount adapter is needed. Brass thumbscrews facilitate easy loading and un-loading.

Overall size is 50 x 29 x 13.5mm (2 x 1-1/8 x 5/8"). Standard ø3.2mm (1/8") pin. Material: vacuum grade aluminum with brass screws.

Screws used are 4-40 x 3/8, Thumb, Brass and 6-32 x 1/2, Thumb, Brass

15484

15484-1

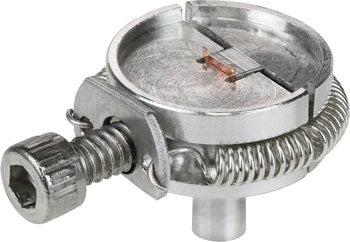

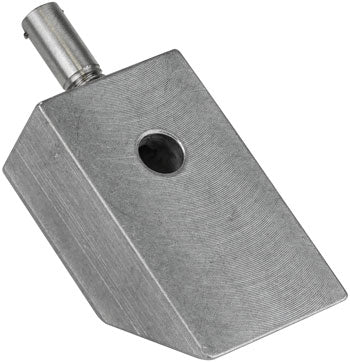

PELCO^® Fortress FIB Holder™ & Sample Loader

The PELCO^® Fortress FIB Holder™ is used for TEM sample preparation and storage. The PELCO^® Fortress FIB Holder™ is the former South Bay Technology Fortress FIB Holder. FIB lift-out grids are clamped securely in place by a tensioned spring without the need for adhesives. Sample loading is easy when the PELCO^® Fortress FIB Holder™ is paired with the Sample Loader. Paired with a pin stub desiccator or other pin stub storage container, the PELCO^® Fortress FIB Holder™ securely stores FIB grids with lamella attached. This holder is suitable for all FIB/SEM systems which accept pin mount holders such as Thermo Fisher Scientific/FEI, ZEISS and Tescan systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

Overall size is 20.7 x 14.6 x 13.2mm (0.81 x 0.5 x 0.52"), pin included. Standard ø3.2mm (1/8") pin. Material: vacuum grade aluminum with stainless steel thumbscrew.

Screw used is 4-40 x 1/2, Thumb, Stainless Steel

PELCO® Technical Notes, PELCO® Fortress Holder™ & PELCO® Fortress Sample Loader™ (612KB PDF)
