Diamond RealSeal™ Plastic Carboys

Diamond RealSeal™ carboys and caps are designed with semi-buttressed threads for superior performance compared to round threads found on inferior carboys.

Medical Grade Resins to Meet Demanding Requirements

• USP Class VI for pharma and research applications
• FDA CFR-21 compliant for food contact
• Free of heavy metals and RoHS compliant
• BPA and phthalate free


Precision Molded for Consistent Wall Thickness & Smooth Surfaces

• Improves bottle and seal integrity
• Reduces content “hang-up”
• Manufactured in an ISO 13485 and ISO 9001 certified facility

Leakproof, Linerless Caps for Secure Closure

• Integrated seal ring molded in cap to prevent leaks
• Linerless cap design to reduce contamination risks associated with liners: wrinkles, tears, wear, corrosion, reaction and leakage

Value & Quality

• Laboratory bottle quality and performance with savings associated with economy bottles
• Reduced shipping costs compared to glass bottles

Safety & Convenience

• Safe, shatter-resistant alternative to glass bottles
• Lighter than glass for improved handling

Leak Testing Protocol for Carboys & Bottles Above 1000mL

• Bottles are filled to 80% of nominal capacity, closed per minimum torque requirements
• Bottles are inverted and inspected for leakage
• Bottles are partially inverted with water in contact with closure for 24 hours and are inspected for leakage
• Standard leak testing of Diamond RealSeal™ bottles is performed with water. Testing with other liquids may yield different results.

---

---

Diamond RealSeal™ Plastic Carboys

Diamond RealSeal™ Plastic Carboys meet the large volume liquid storage and dispensing needs of the most demanding laboratory applications. Rugged and durable, Diamond RealSeal™ Carboys are the safe, shatterproof alternative to glass for mixing, storing, and dispensing liquids in volumes from five to fifty liters. The carboys are available in a wide range of materials and designs suitable for use with most media, reagents, and solutions used in laboratories across the world.

Diamond RealSeal™ Carboys are precision molded from virgin resins for consistent wall thickness and smooth interior and exterior surfaces. The carboys include leak-proof polypropylene caps that are engineered with an integrated seal ring for leak-proof closure.

Technical Notes, Diamond RealSeal™ Plastic Labware (55KB PDF)

---

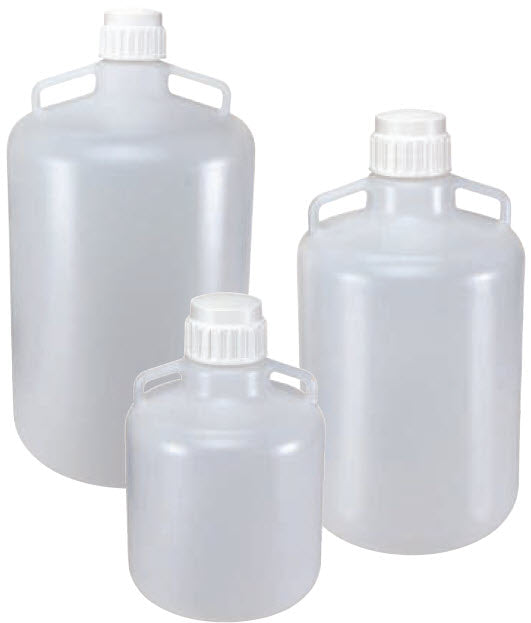

Round Carboys

• Round design maximizes mixing efficiency
• Integrated wide handles facilitate easy carrying and pouring, even when wearing gloves
• Easy to read, molded graduations

Low-Density Polyethylene (LDPE) Round Carboys

LDPE Carboys maintain flexibility and shatterproof safety down to -75°C.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145	10L	83mm	65mm	249mm	390mm
145-1	20L	83mm	65mm	285mm	535mm
145-2	50L	83mm	65mm	376mm	682mm



---

Polypropylene (PP) Round Carboys

PP Carboys are autoclavable at 121ºC and have the best chemical resistance.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-3	10L	83mm	65mm	249mm	390mm
145-4	20L	83mm	65mm	285mm	535mm
145-5	50L	83mm	65mm	376mm	682mm



---

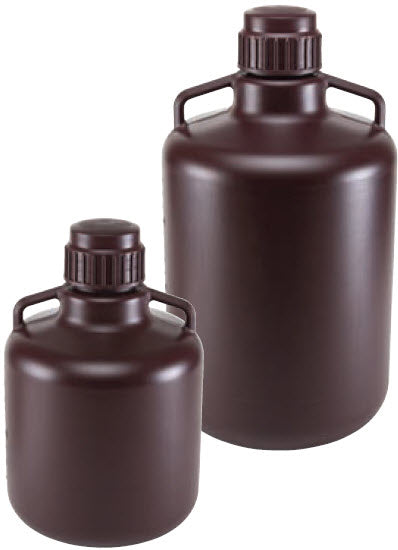

Amber High-Density Polyethylene (HDPE) Round Carboys

• Reduce UV light transmission to protect light sensitive contents during storage and transport
• Comply with US Pharmacopeia requirements for maximum light transmission

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-6	10L	83mm	65mm	249mm	390mm
145-7	20L	83mm	65mm	285mm	535mm



---

---

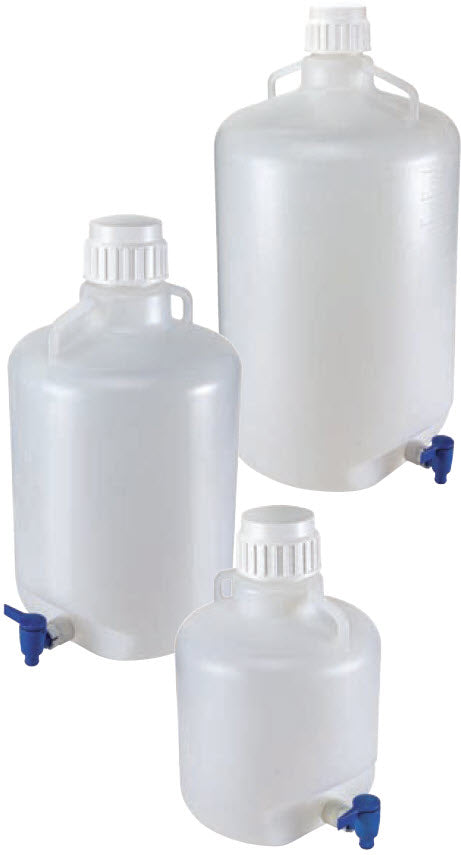

Round Carboys with Spigot

• Spigot allows simple and accurate dispensing of media and solutions
• Round design maximizes mixing efficiency
• Integrated wide handles facilitate easy carrying and pouring, even when wearing gloves
• Easy to read, molded graduations

---

Polypropylene (PP) Round Carboys with Spigot

PP Carboys with Spigot are autoclavable at 121ºC and have the best chemical resistance.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-8	10L	83mm	65mm	249mm	390mm
145-9	20L	83mm	65mm	285mm	535mm
145-10	50L	83mm	65mm	376mm	682mm



---

Low-Density Polyethylene (LDPE) Round Carboys with Spigot

LDPE Carboys maintain flexibility and shatterproof safety down to -75°C.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-11	10L	83mm	65mm	249mm	390mm
145-12	20L	83mm	65mm	285mm	535mm
145-13	50L	83mm	65mm	376mm	682mm



---

---

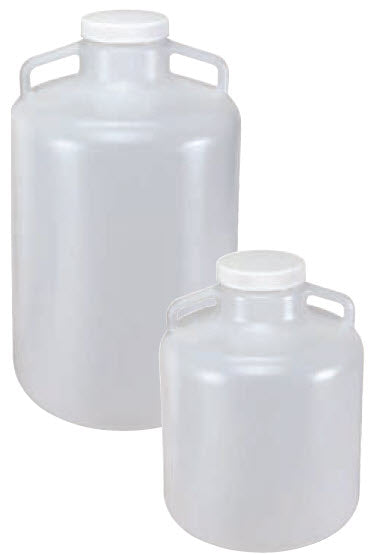

Wide Mouth Carboys

• Wide 100mm mouth for use with solids, powders, and overhead mixing equipment
• Integrated wide handles facilitate easy carrying and pouring, even when wearing gloves
• Easy to read, molded graduations

Polypropylene (PP) Wide Mouth Carboys

PP Wide Mouth Carboys are autoclavable at 121ºC and have the best chemical resistance.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-14	10L	100mm	95mm	249mm	390mm
145-15	20L	100mm	95mm	285mm	535mm



---

Low-Density Polyethylene (LDPE) Wide Mouth Carboys

LDPE Carboys maintain flexibility and shatterproof safety down to -75°C.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-16	10L	100mm	95mm	249mm	390mm
145-17	20L	100mm	95mm	285mm	535mm



---

---

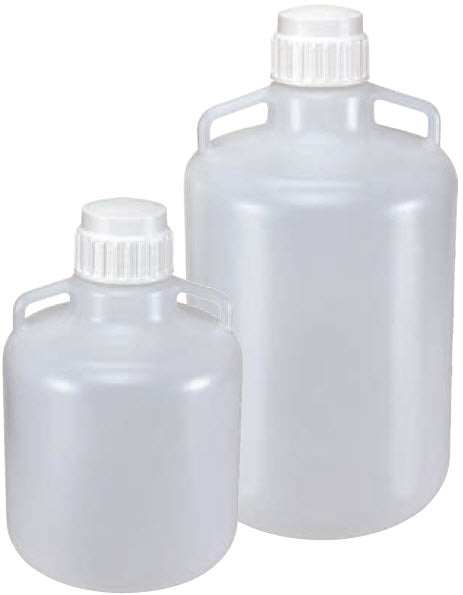

Heavy Duty Round Carboys

• Thick walls provide added strength and extra durability
• Holds full vacuum up to 8 hours
• Round design maximizes mixing efficiency
• Integrated wide handles facilitate easy carrying and pouring, even when wearing gloves
• Easy to read, molded graduations

Polypropylene (PP) Heavy Duty Round Carboys

PP Heavy Duty Carboys are autoclavable at 121°C

Product No.	Capacity	Closure Size	Neck I.D.	Bottle O.D.	Height w/Cap
145-18	10L	83mm	65mm	249mm	390mm
145-19	20L	83mm	65mm	285mm	535mm



---

---

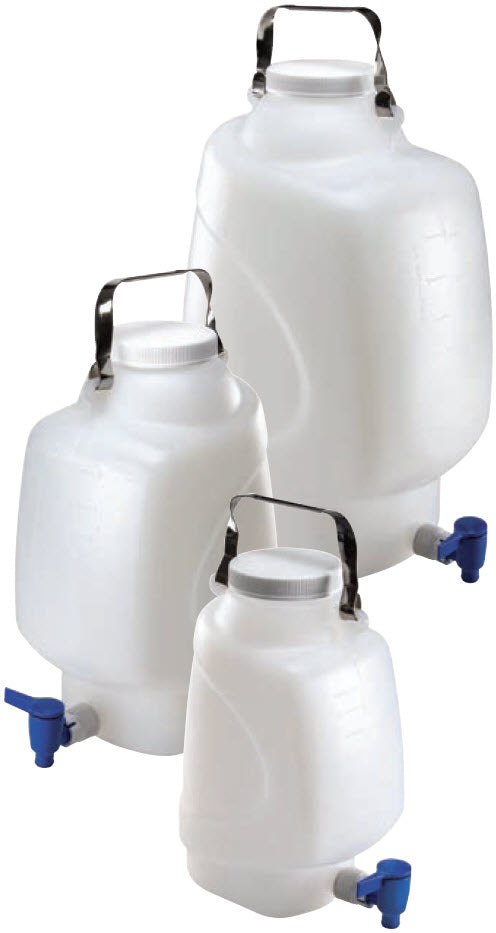

Rectangular Carboys with Spigot

• Rectangular design maximizes storage efficiency
• Spigot allows simple and accurate dispensing of media and solutions
• Integrated stainless steel handle for easy carrying and pouring
• Easy to read, molded graduations

High-Density Polyethylene (HDPE) Rectangular Carboys with Spigot

HDPE is safe for freezer storage down to -100°C.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle Dimensions	Height w/Cap
145-20	10L	100mm	86mm	227 x 144mm	342mm
145-21	20L	100mm	86mm	284 x 176mm	400mm
145-22	50L	100mm	86mm	342 x 207mm	492 mm



---

Polypropylene (PP) Rectangular Carboys with Spigot

PP carboys are autoclavable at 121°C and have the best chemical resistance.

Product No.	Capacity	Closure Size	Neck I.D.	Bottle Dimensions	Height w/Cap
145-23	10L	100mm	86mm	227 x 144mm	342mm
145-24	20L	100mm	86mm	284 x 176mm	400mm
145-25	50L	100mm	86mm	342 x 207mm	492 mm
