Adjust-A-Vac™ Vacuum Pick-Up Tool

Selecting a Vacuum Pick-Up System

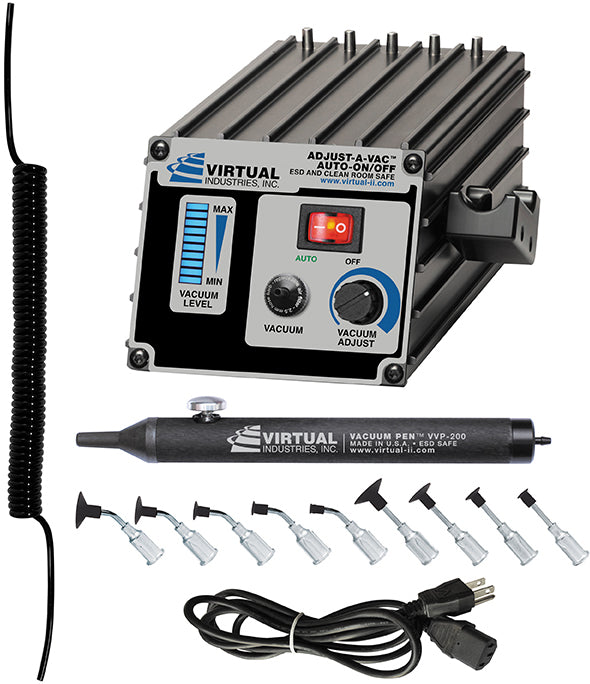

Auto-ON/OFF ESD Safe Kit With Buna-N Static Dissipative Non-Marking Vacuum Cups with Probes

#522-10 and included accessories

• Supplied with nine probes and Buna-N cups (specified below)
• Vacuum up to 8" Hg at sea level
• ESD Safe
• Class 100 Cleanroom Safe
• Auto-ON/OFF feature
• CE-marked
• Control knob to reduce vacuum level to pick up tip
• Push-button vacuum pen
• Bar LED graph power-on and vacuum-level indicator

A compact desktop vacuum pick-up system (8 x 3 x 3.5" / 203 x 76 x 89mm) with variable vacuum. Both ESD and Class 100 Cleanroom safe, this unit is ideal for handling small, delicate materials that may break with higher vacuum. Storage for five probes on top of the pump.

Contains five 1/2" (12.70mm) long bent probes with 3/32" (2.38mm), 1/8" (3.18mm), 3/16" (4.76mm), 1/4" (6.35mm), 3/8" (9.53mm), and four 1/2" (12.70mm) long straight probes with 1/8" (3.18mm), 1/4" (6.35mm), 3/8" (9.53mm), 1/2" (12.70mm) diameter static dissipative Buna-N Cups.

Compatible with the Metal Tips for the PELCO^® Vacuum Pick-up System and the Probes/Cups shown on this page.
